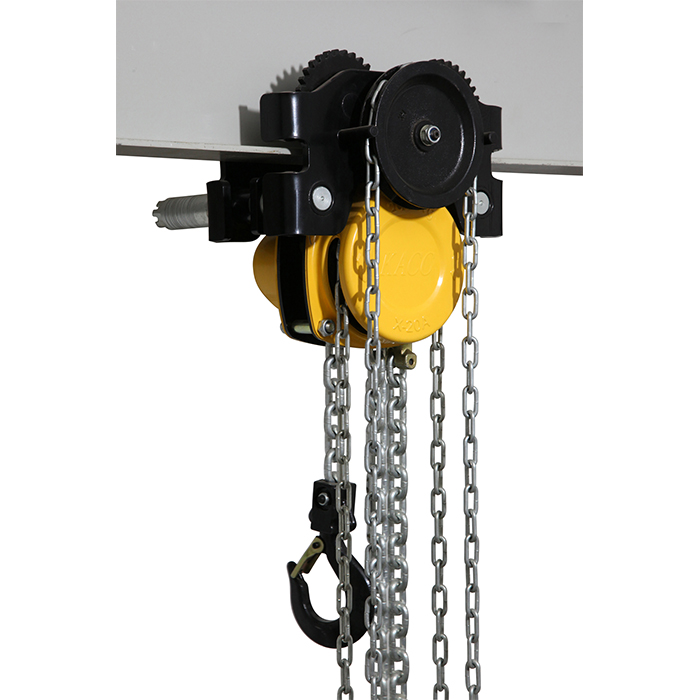

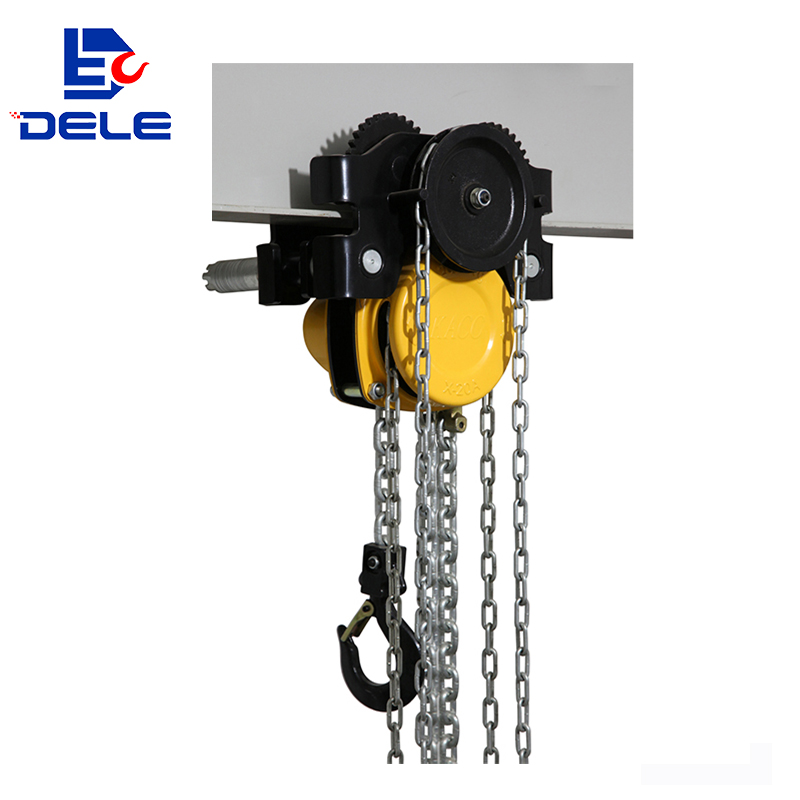

HTG CHAIN HOIST
Make by Standard:EN13157
● HTG lower headroom trolley hoist load working below 3000 kilograms of hoist adopt single structure,applications,lower clearance size,especially suitable for limited space.
● Small installation and adjustment is very convenient,and trolley can be accurate adjustment according to the steel beam width.
●Under the working load 5 tons of trolley can be set to two basic standard style, type Atrolley is suitable for the crane maximum width of 180 mm,and also easy change for the crane maximum 300mm.
●The trolley wheel designed to ensure the largest rail join surface, and used the processing of lubrication,sealed ball bearings to ensure the good running of the wheel.
●The car standard tilt and fall prevention device
Using the environment conditions
●Using the temperature range:-40℃-+60℃.
●Please use below 100% RH, cannot use in the water.
●Use material :not use fire prevention materials or asbestos and other special materials.
●It is forbidden to use overload.
| Model | HTG | HTG-005 | HTG-010 | HTG-020 | HTG-030 | HTG-050 | HTG-100 |
| Capacity | （t) | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Standard lift | (m) | 3 | 3 | 3 | 3 | 3 | 3 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | 2 | 3 | |
| Effort required to lift max load | (N) | 240 | 305 | 360 | 370 | 370 | 400 |
| Running testload | (kg) | 750 | 1500 | 3000 | 4500 | 7500 | 15000 |
| Load chain diameter×Number of falls | (mm) | 5*15 | 6*18 | 8*24 | 10*30 | 10*30 | 10*30 |
| hand chain diameter×Number of falls | (mm) | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 |
| Lifting chain hoisting height increase weight of 1 meter | (kg/m) | 0.541 | 0.77 | 1.36 | 2.2 | 4.4 | 6.6 |
| Gross weight | (kg) | 14.8 | 23.5 | 43.7 | 58 | 84 | 140 |
| The minimum clearance(hmin) | (mm) | 250 | 259 | 376 | 447 | 595 | 806 |
| Beam width | (mm) | 50-203 | 74-203 | 85-203 | 100-203 | 114-203 | 124-203 |
| Minimum bend radius | (m) | 0.85 | 1 | 1.1 | 1.3 | 1.4 | 3 |

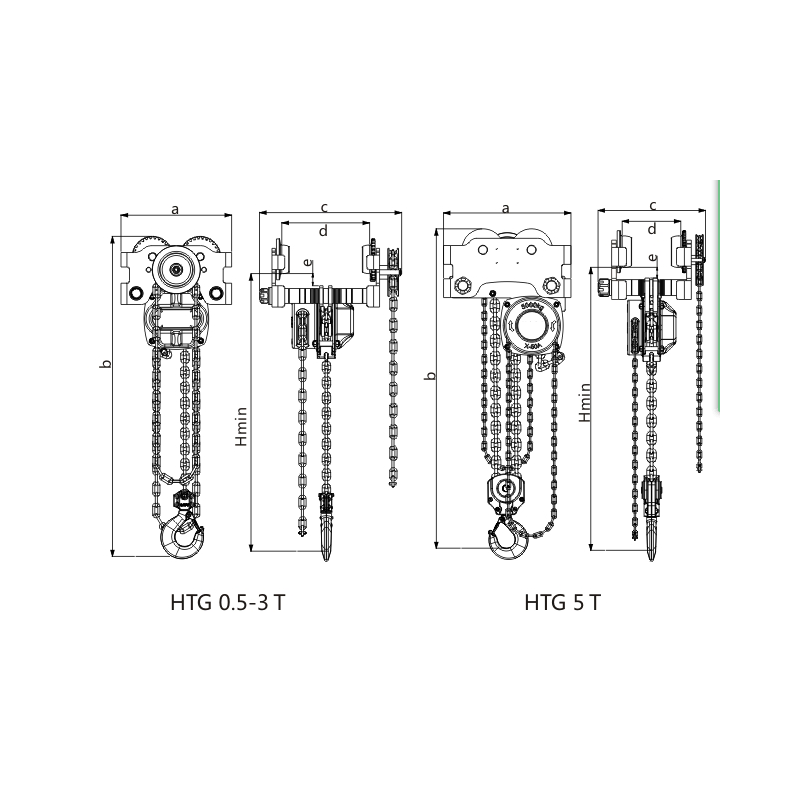

| Dimensions (mm) | a | 210 | 240 | 280 | 340 | 420 | 452 |
| b | 312 | 382 | 481 | 588 | 753 | 988 | |
| c | 208 | 312 | 329 | 351 | 368 | 387 | |
| d | 190 | 203 | 203 | 203 | 205 | 203 | |
| e | 24 | 26 | 35 | 37 | 40 | 41 |
