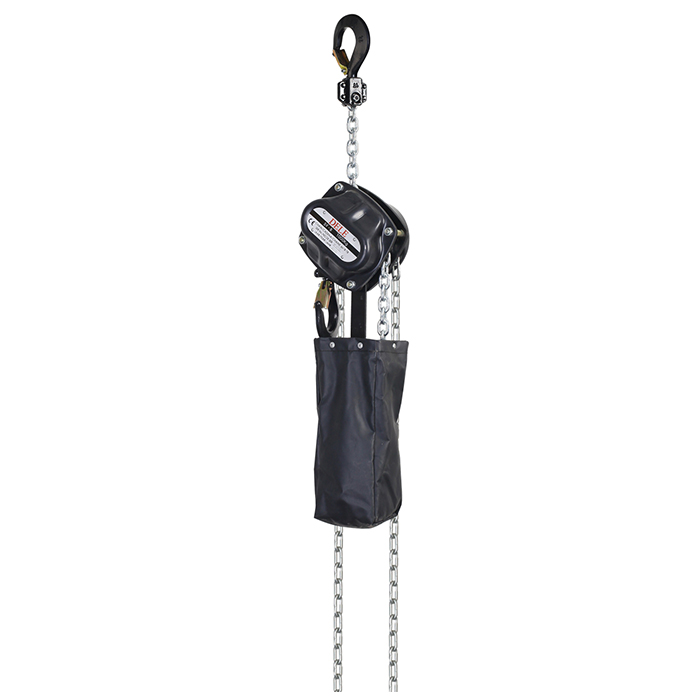

DE CHAIN HOIST
●All the parts are made of high quality material and using additional coating and painting process to increase the corrosion resistance.
●strong full metal enclosure even under harsh conditions can effectively protect the internal institutions from damage.
●leading chain institutions and gear transmission mechanism has the enclosure protection device,can protect these key components, adapt to different operating environment.
●lifting chain made of hard materials and after finishing processes, and guarantee the accuracy of the chain smooth action.
●Low level of clearance size can maximum use of space,increase the effective distance of ascension.
●The surface of galvanized steel lifting chain, and block the body perfect match can ensure smooth operation and accurate operation.
●The material of hook up and down with anti-aging, high tenacity alloy steel, overload which occurredin one thousand when the distortion and won't suddenly broken, first to ensure the safety of the user.
| Model | HSH | DE-500 | DE-1000 | DE-2000 | DE-3000 |
| Capacity load | (kg) | 500kg | 500kg | 2000kg | 3000kg |
| Standard lift | (m) | 3 | 3 | 3 | 3 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | |
| Effort required to lift max load | (N) | 240 | 305 | 340 | 370 |
| Running testload | (kg) | 750 | 1500 | 3000 | 4500 |
| Load chain diameter*Number of falls | (mm) | 5*15 | 6*18 | 8*24 | 10*30 |
| Hang chain diameter*Number of falls | (mm) | 5*25 | 5*25 | 5*25 | 5*25 |
| Net weight | (kg) | 6.7 | 12 | 18 | 27 |
| Packing weight | (kg) | 7 | 12.5 | 19.6 | 28 |
| Add 1m load chain N.W | (kg/m) | 0.541 | 0.77 | 1.36 | 1.36 |
| Add 1m hand chain N.W | (kg/m) | 0.9 | 0.9 | 0.9 | 0.9 |

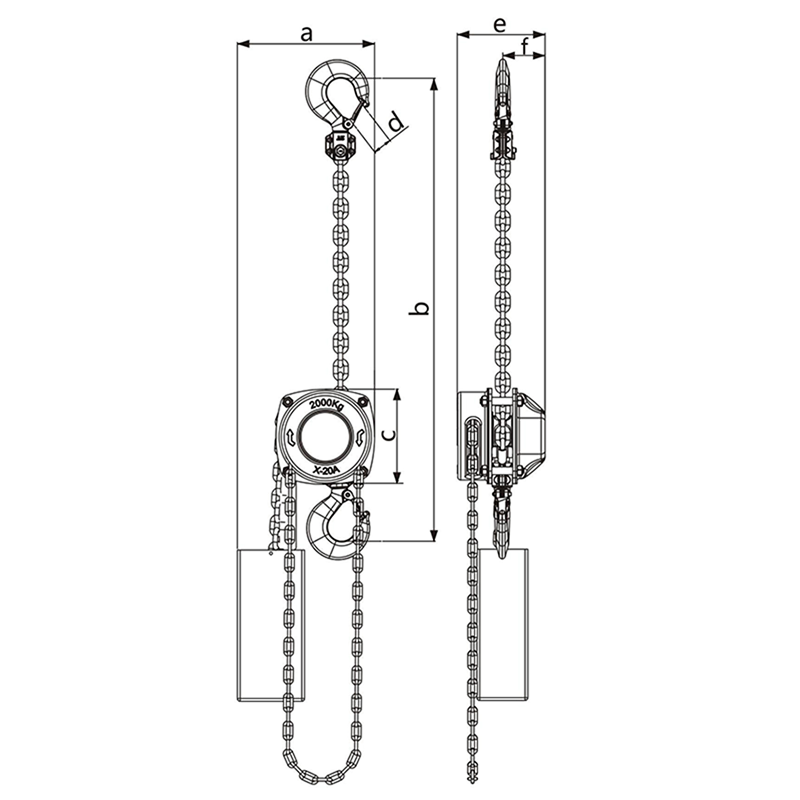

| Dimensions(mm) | a | 152 | 182 | 206 | 246 |
| b | 34 | 40 | 52 | 62 | |
| c | 118 | 145 | 170 | 204 | |
| d | 31 | 35 | 40 | 45 | |
| e | 119 | 145 | 157 | 107 | |
| f | 65 | 79 | 81 | 83 | |
| Hmin | 311 | 361 | 413 | 510 | |
