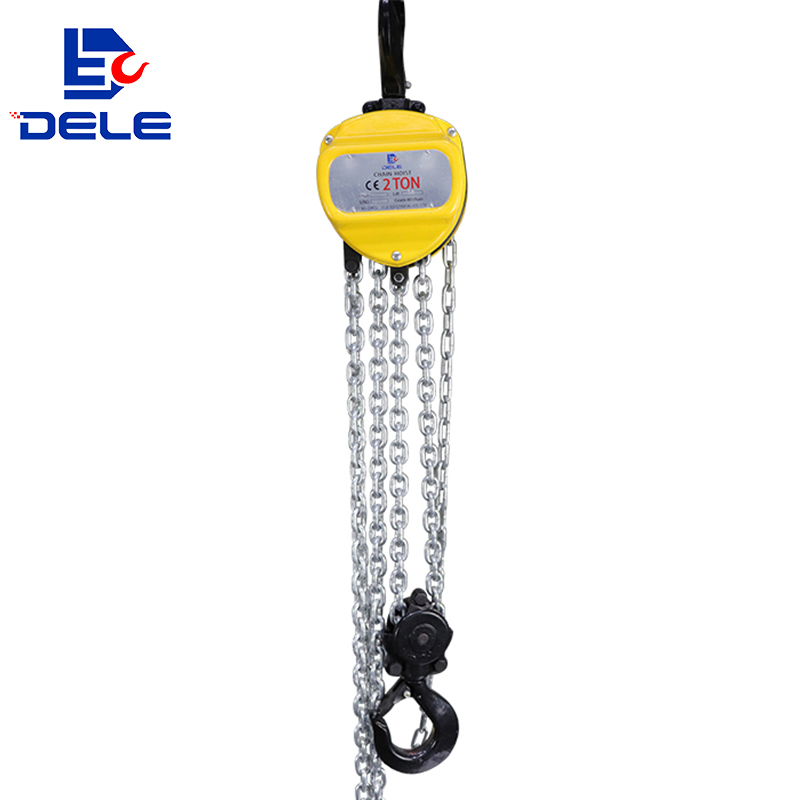

CK CHAIN HOIST
Make by Standard:EN13157
1:Chain hoist Capacity range from 0.5ton to 50 ton.
2: Multi-point supporting ,low fault rate.
3:With double pawl,increase the safety factor in 2times.
4:All nuts in anti-slip nuts.
5:Smooth rotation, high efficiency, light hand pull.
6:Fitted with High strength grade 80 alloy steel load. chain with galvanized finish for corrosion resistance(comply with EN 818, safety factor 4)
| MODEL | CK-0.5T | CK-1T | CK-1.5T | CK-2D | CK-2T | CK-3T | CK-5T | CK-10T | CK-20T | |
| Capacity | （T） | 0.5 | 1 | 1.5 | 2 | 2 | 5 | 5 | 16 | 20 |
| Standard lift | （m） | 2.5 | 2.5 | 2.5 | 3.0 | 2.5 | 3 | 3 | 3 | 3 |
| Running test load | （T） | 0.75 | 1.5 | 2.25 | 3.0 | 3 | 4.5 | 6.25 | 12.5 | 25 |
| Headroom Hmin | (mm) | 258 | 247 | 347 | 444 | 396 | 486 | 616 | 700 | 1000 |
| Effort required to lift max.load | (N) | 221 | 304 | 343 | 294 | 314 | 343 | 382 | 392 | 392 |
| NO.of columns of load | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Load chain dia. | (mm) | 6 | 6 | 8 | 8 | 6 | 8 | 10 | 10 | 10 |

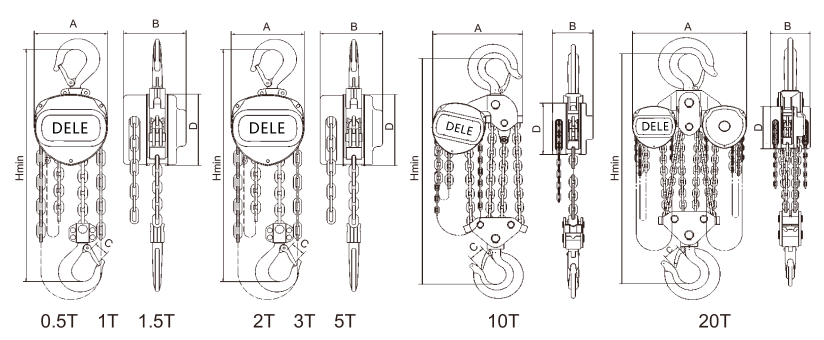

| Dimensions(mm) | A | 125 | 147 | 183 | 215 | 147 | 183 | 215 | 360.5 | 585 |
| B | 111 | 126 | 141 | 163 | 126 | 141 | 163 | 163 | 191 | |
| D | 24 | 28 | 34 | 38 | 34 | 38 | 48 | 64 | 82 | |
| H | 134 | 154 | 192 | 224 | 154 | 192 | 224 | 224 | 224 | |
| Net weight | （kg） | 8 | 10 | 16 | 27 | 14 | 24 | 36 | 68 | 156 |
| Extra weight per meter of extra lift( kg) | 1.7 | 1.7 | 2.3 | 5.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | |
