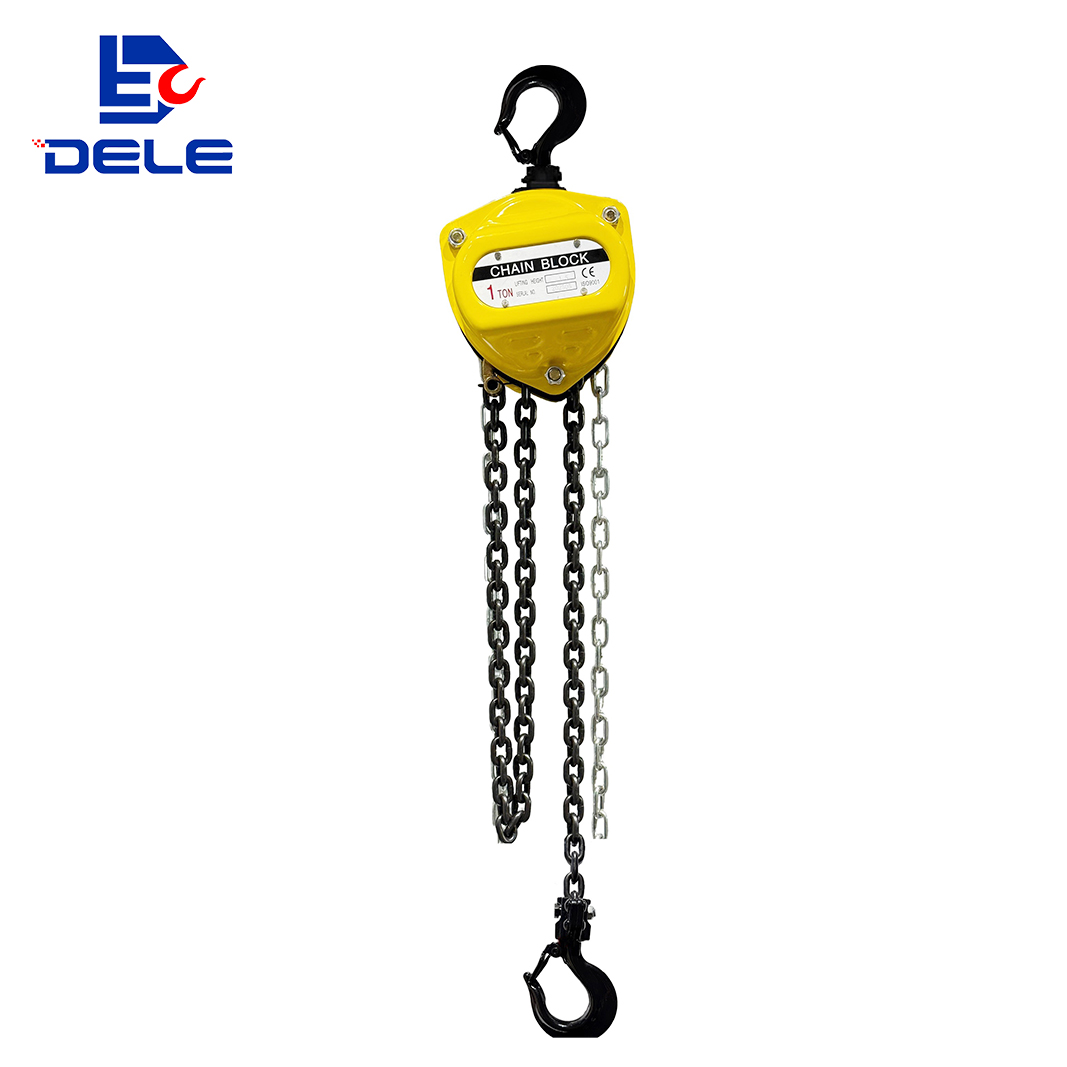

VN MANUAL CHAIN HOIST
●Make by Standard : EN13157
●Chain hoist capacity range from 0.5 ton to 100 ton.
●Multi-support structure, more reasonable force, flexible operation and low failure rate of the transmission system.
●With double pawls, increase the safety factor in 2 times.
●All nuts in anti-slip nuts.
●Smooth rotation, high efficiency, light hand pull.
●The hand cover uses special crimping process,keep the hand chain not tilting and not snapping.
Fitted with high strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance (comply with EN 818-7, safety factor 4).

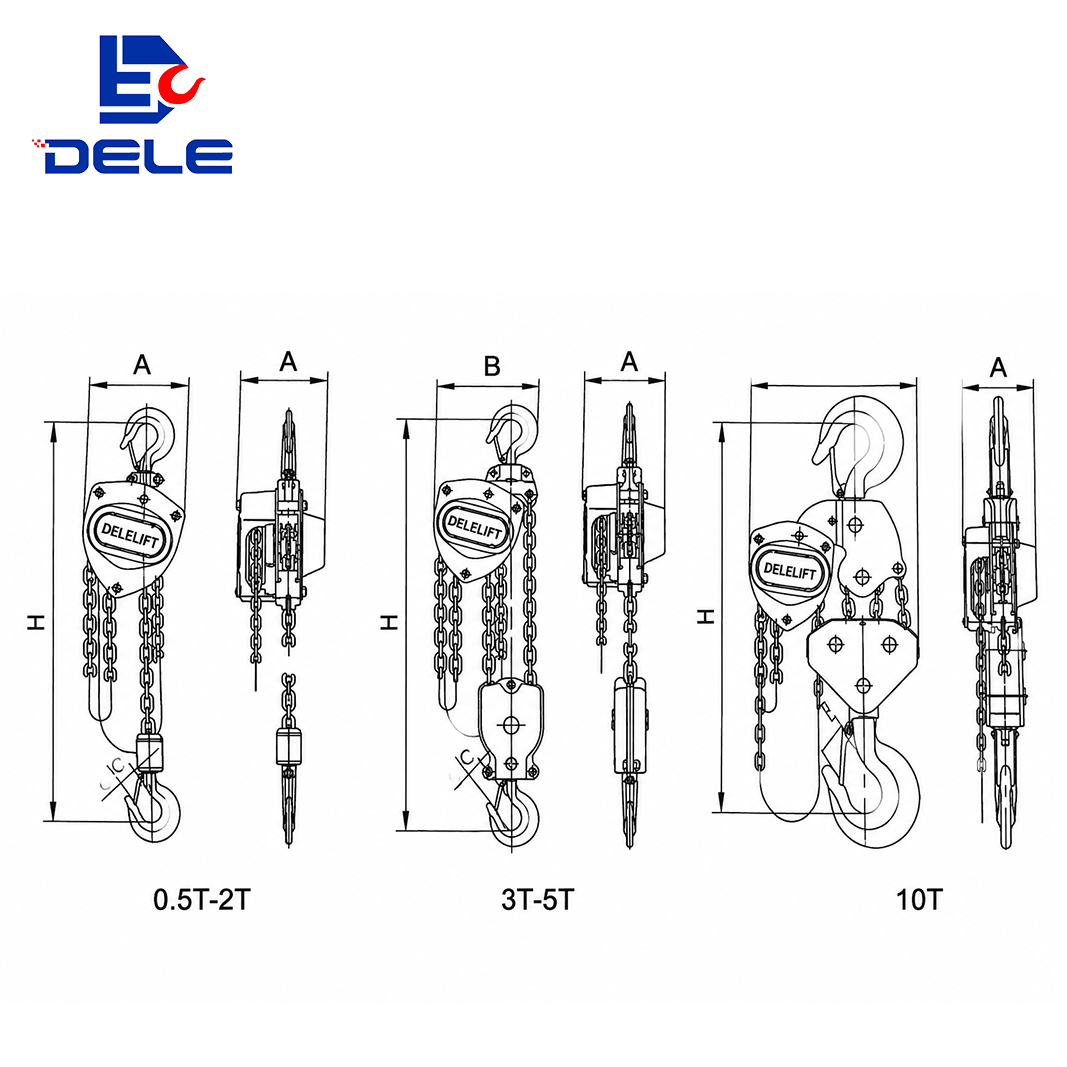

| Model | Capacity (T) | Standard lift(m) | Running Test (T) | Effort required to lift max load (N) | Load chain number of falls (mm) | Load chain Diameter (mm) | Dimension(mm) | Net Weight (kg) | Packing (L*W"H) (cm) | |||
| A | B | C | H | |||||||||
| VN-0.5T | 0.5 | 3 | 0.75 | 240 | 1 | 5 | 132 | 148 | 28 | 345 | 11 | 24*19*18 |
| VN-1T | 1 | 3 | 1.5 | 250 | 1 | 6 | 151 | 172 | 32 | 376 | 12.5 | 28*21*21 |
| VN-2D | 2 | 3 | 3 | 335 | 1 | 8 | 175 | 210 | 36 | 470 | 19.5 | 34*26*20 |
| VN-2S | 2 | 3 | 3 | 330 | 2 | 6 | 151 | 159 | 32 | 315 | 12 | 25*19*16 |
| VN-3D | 3 | 3 | 4.5 | 363 | 1 | 10 | 176 | 230 | 46 | 565 | 29 | 34*26*20 |
| VN-3S | 3 | 3 | 4.5 | 370 | 2 | 7/8 | 151 | 208 | 46 | 475 | 24 | 34.5*24*16 |
| VN-5T | 5 | 3 | 7.5 | 360 | 2 | 10 | 189 | 280 | 46 | 688 | 41.3 | 41*32*24 |
| VN-7.5T | 7.5 | 3 | 10 | 410 | 3 | 10 | 188 | 398 | 57 | 720 | 79 | 48*42*18.5 |
| VN-10T | 10 | 3 | 12.5 | 380 | 4 | 10 | 189 | 463 | 57 | 765 | 78.5 | 48*42*18.5 |
| VN-15T | 15 | 3 | 15 | 435 | 6 | 10 | 190 | 580 | 75 | 870 | 120 | 69*56*20 |
| VN-20T | 20 | 3 | 20 | 435*2 | 8 | 10 | 192 | 630 | 82 | 890 | 193 | 78*68*20 |
| VN-30T | 30 | 3 | 30 | 435*2 | 12 | 10 | 330 | 670 | 106 | 1000 | 220 | 85*67*30 |
| VN-50T | 50 | 3 | 50 | 435*2 | 22 | 10 | 410 | 900 | 130 | 1950 | 1092 | 110*100*130 |
| VN-100T | 100 | 3 | 100 | 435*4 | 20*2 | 10 | 745 | 1140 | 170 | 2680 | 1500 | 220*320*800 |
