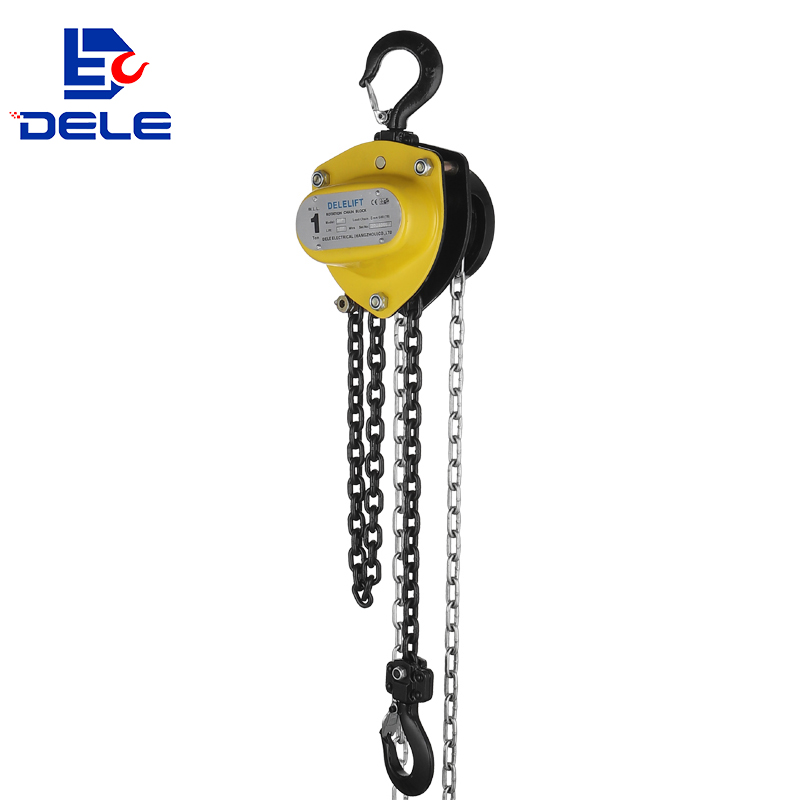

SLA360 SERIES MANUAL CHAIN HOIST
●This type can be used in 360 degrees.
●This type is equipped with axletree and can reduce hand pulling force.Patent model with revolutionary design.
●Special designed top hook can backout easily and can be installed with trolley directly.
●Premium grade alloy load chain and zinc plated hand chain as standard.
●Drop- forged and expertly heat treated hooks for great strength and long wearing.
●Capacity ranges from 0.5t to 20t, heavy duty 30t,50t is available.
●The hooks are fitted with robust safety latches and rotate 360°.
●Can carry overload limiter.
| Model | Capacity (t) | Standard lift(m) | Running test load(KN) | Effort required to lift rated load(N) | Diameter of hand chain(mm) | Strands of load chain | Diameter of load chain(mm) | Dimensions(mm) | Net weight(kg) | Packing measurement(cm) | Extra weight per metre of extra lift(kg) | ||||
| A | B | C | D | K | |||||||||||
| SLA-0.25t | 0.25 | 2.5 | 3.75 | 220 | 3*15 | 1 | 4*12 | 102 | 106 | 260 | 21 | 20 | 3.8 | 20*15*12 | 0.37 |
| SLA-0.5t | 0.5 | 2.5 | 7.5 | 250 | 5*23.6 | 1 | 6*18 | 132 | 148 | 345 | 35 | 23 | 10 | 37*17*18 | 1.5 |
| SLA-1.0t | 1 | 2.5 | 15 | 285 | 1 | 6*18 | 132 | 148 | 376 | 35 | 23 | 11.8 | 32*20*21 | 1.8 | |
| SLA-1.5t | 1.5 | 2.5 | 22.5 | 380 | 1 | 8*24 | 173 | 196 | 442 | 45 | 33 | 16.5 | 37*20*24 | 2.4 | |
| SLA-2.0t | 2 | 2.5 | 30 | 340 | 1 | 8*24 | 175 | 210 | 470 | 50 | 35 | 18.5 | 37*20*24 | 2.4 | |
| SLA-3.0t | 3 | 3 | 45 | 370 | 2 | 8*24 | 205 | 255 | 548 | 55 | 39 | 24 | 37*25*24 | 3.7 | |
| SLA-3.0t | 3 | 3 | 45 | 370 | 1 | 10 | 189 | 280 | 620 | 55 | 40 | 27 | 3 | ||
| SLA-5.0t | 5 | 3 | 75 | 370 | 2 | 10*30 | 189 | 280 | 688 | 65 | 45 | 41.1 | 40*26*28 | 5.4 | |
| SLA-10t | 10 | 3 | 150 | 380 | 4 | 10*30 | 189 | 463 | 765 | 75 | 54 | 78 | 54*35*47 | 9.8 | |
| SLA-15t | 15 | 3 | 225 | 380 | 6 | 10*30 | 200 | 718 | 900 | 95 | 71 | 135 | 88*40*65 | 14.7 | |
| SLA-20t | 20 | 3 | 300 | 390*2 | 8 | 10*30 | 200 | 840 | 950 | 106 | 82 | 192 | 88*40*65 | 19.6 | |
| SLA-30t | 30 | 3 | 450 | 390*2 | 12 | 10*30 | 350 | 700 | 1020 | 110 | 85 | 300 | 95*45*70 | 28.5 | |
| SLA-50t | 50 | 3 | 750 | 390*2 | 22 | 10*30 | 430 | 930 | 1920 | 130 | 130 | 1120 | 1300*1000*800 | 60.5 | |
