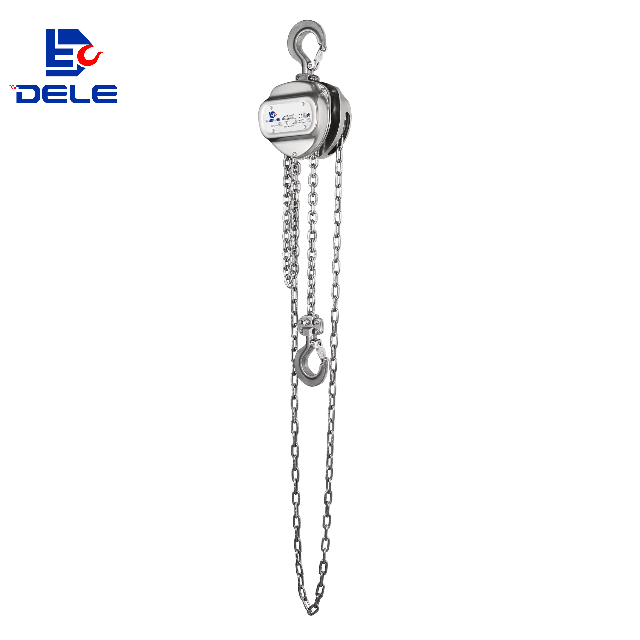

DKS SUBSEA CHAIN HOIST
This product is suitable for chemical applications and high cleaning requirements, such as specialist topside and subsea hoisting range,drug processing, food processing, sewage treatment and other industries.
Make by Standard: EN13157/ASTM11
●lt can be used within an operating temperature range from -40°C to +55°C.
●Chain hoist capacity range from 1 ton to 5 tons.
●Double pawls as standard.
●Stainless steel hook with stainless steel safety latch securely can rotate,freely 360 degrees.
●600hrs + Protection against salt spray tests according to ASTM B117.
●Calibrated grade S(6)316L stainless steel load chain, hand chain and bottom hook (stainless steel bottom hooks are only available for 500kg and 1 tonne units).
●Calibrated grade T(8) load chain to BS EN818-7 DT9 corrosion coated and hand chain dacromet corrosion coated.
| Model | DKS-1T | DKS-2T | DKS-3T | DKS-5T | ||
| Capacity load | （t） | 1 | 2 | 3 | 5 | |
| Test load | （t） | 1.5 | 3 | 4.5 | 7.5 | |
| Standard lift | （m） | 3 | 3 | 3 | 3 | |
| Effort required to lift max load | （N) | 304 | 304 | 343 | 414 | |
| Load chain specifications | （mm) | 6 | 6 | 8 | 10 | |
| Gross weight | （kg) | 12 | 16.5 | 27 | 41 | |
| Net weight | （kg) | 10.5 | 16 | 25 | 39 | |
| Packing size | （cm） | 25*19*17 | 31*21*19 | 34.5*24*19 | 40*32*19.5 | |
| Add 1m weight | （kg) | 1.7 | 2.5 | 3.7 | 5.3 | |
| Load chain Number of falls | 1 | 2 | 2 | 2 | ||

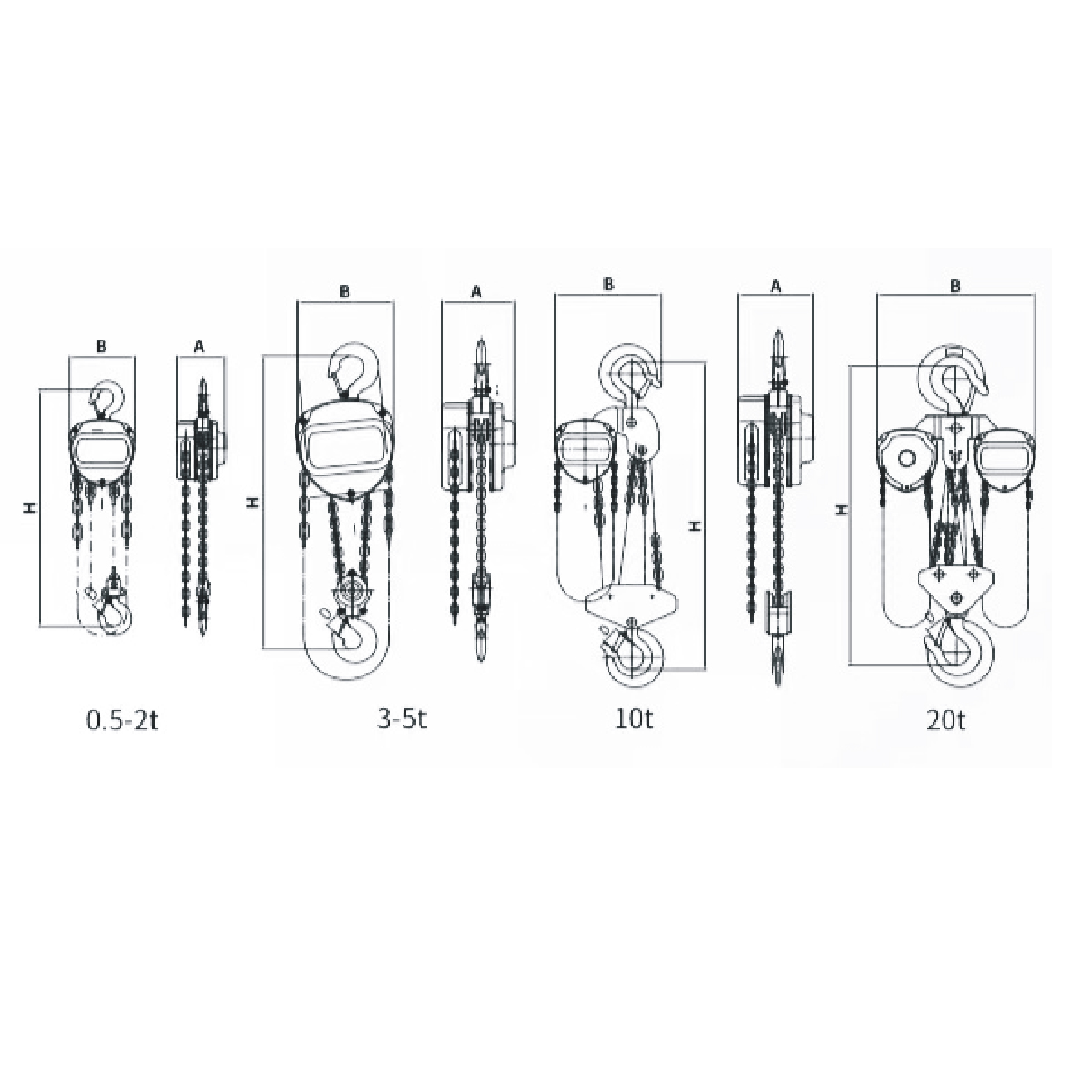

| Dimensions(mm） | A | 126 | 141 | 141 | 163 | |
| B | 147 | 183 | 183 | 215 | ||
| H | 306 | 368 | 486 | 616 | ||
| D | 32 | 36 | 46 | 46 | ||
